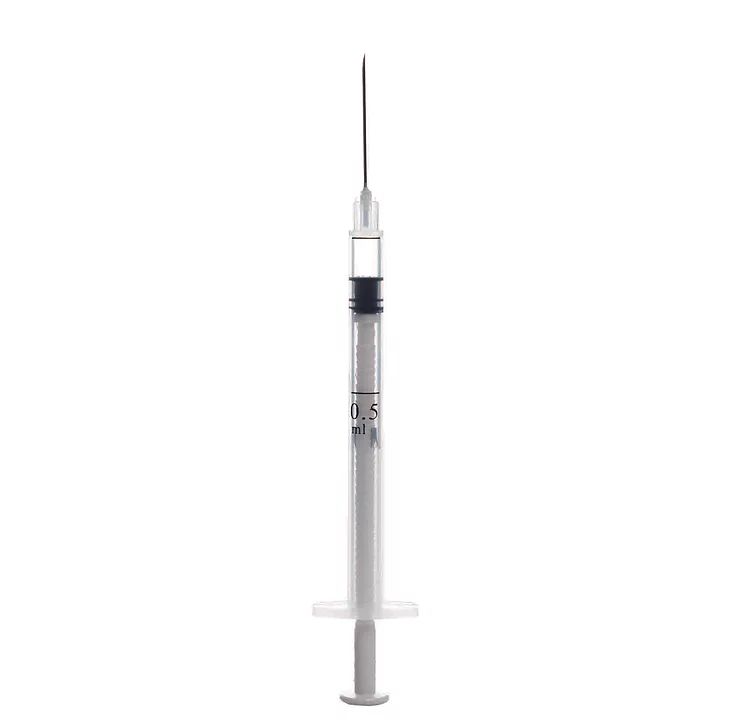

AD syringe Model 1

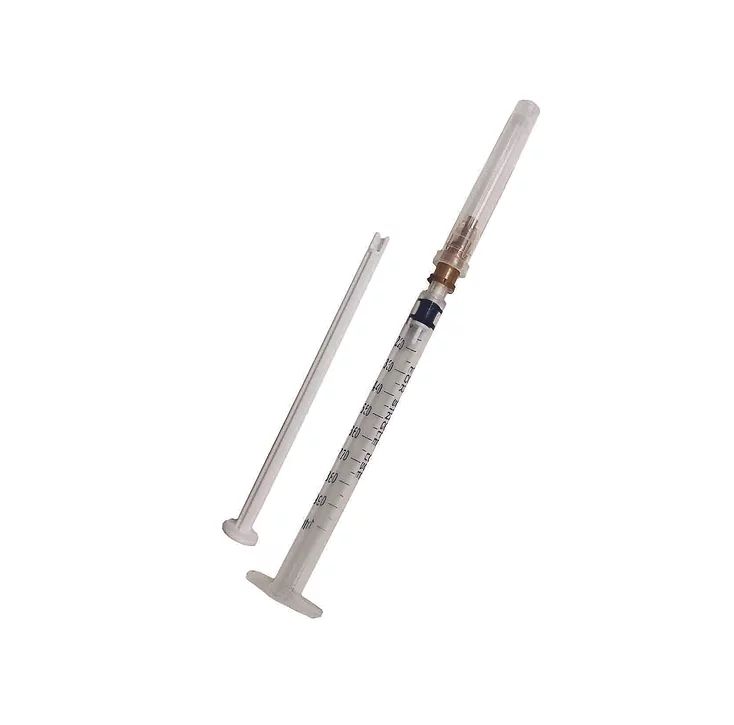

AD syringe Model 2

Product Use

It is used for Covid-19 vaccine inoculation, the plunger of syringe will be locked to prevent the reuse, help eliminate touch contamination.

Features

• In all cases, once the auto-disable feature has been activated, It is not possible to re-use the syringe and the needle under the normal conditions of use.

• It is not be possible to override the auto-disable feature when tested in accordance with the test method of ISO7886-3 Annex C.

Model 1, With Integrated needle

• If an integrated needle is used, it shall become an integral part of the syringe and can not be detached.

• The auto-disable feature is automatically and remains effective from the point when 50% of the intended fixed dose has been delivered.

• Invention patented.

  Code	Size	Needle Size
  ASS1-0.5	0.5ml	23G-27G
  ADS1-1	1ml	23G-27G



  Model 2, With non-integrated needle

• Syringe with non-integrated needle shall have a minimum needle unicon force applied as push or pull in the direction of the needle axis in accordance with ISO 7864:1993

• The auto-disable feature is automatically activated on completion of the delivery of the intended fixed dose

• Central luer slip


  Code	Size
  ADS2-2	2ml
  ADS2-3	3ml
  ADS2-5	5ml
