Product use:

Subdural, lower thorax and lumbar spinal puncture.



Features:

  • Full sizes of anesthesia needles.

  • Identified as spinal needle bevel quincke tip, pencil point tip and epidural needle.

  • 304 stainless steel needle tubes and stylets.

  • International colour coding.

  • With mounted introducer needle.

  • Luer lock hub.


    Quincke tip Introducer Length Code
    18Gx3-1/2’’ None 38-220mm SNQ18
    19Gx3-1/2’’ None 38-220mm SNQ19
    20Gx3-1/2’’ None 38-220mm SNQ20
    21Gx3-1/2’’ None 38-220mm SNQ21
    22Gx3-1/2’’ None 38-220mm SNQ22
    23Gx3-1/2’’ 19Gx1-1/2’’ 38-220mm SNQ23
    24Gx3-1/2’’ 20Gx1-1/2’’ 38-220mm SNQ24
    25Gx3-1/2’’ 20Gx1-1/2’’ 38-220mm SNQ25
    26Gx3-1/2’’ 20Gx1-1/2’’ 38-220mm SNQ26
    27Gx3-1/2’’ 22Gx1-1/2’’ 38-220mm SNQ27


    1) Trauma-free QUINCKE short tip to ensure immediate injection point closure and reduced CSF loss.

    2) Differentiated angle coupling of needle and obturator tip to avoid production and movement of tissue fragments, improving operator sensitivity.


    Pencil point Introducer Length Code
    22Gx3-1/2’’ None 90-220mm SNP22
    23Gx3-1/2’’ 19Gx1-1/2’’ 90-220mm SNP23
    24Gx3-1/2’’ 20Gx1-1/2’’ 90-220mm SNP24
    25Gx3-1/2’’ 20Gx1-1/2’’ 90-220mm SNP25
    26Gx3-1/2’’ 20Gx1-1/2’’ 90-220mm SNP26
    27Gx3-1/2’’ 22Gx1-1/2’’ 90-220mm SNP27

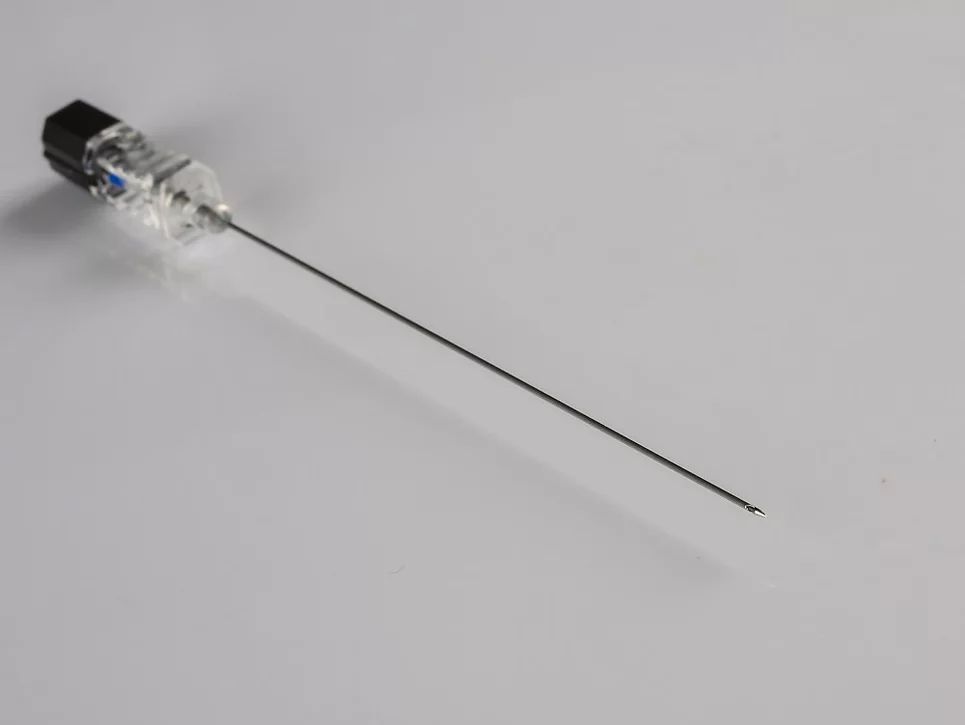

    1) With no sharp edges separates fibers without slicing.

    2) The lateral hole shape and its position relative to the tip favour rapid CSF reflux and effective analgesic administration.

    3) Reduce the risk of saddle block.
